UPS GT COMPACT 1kVA/0,9kW On-Line 1F Rack/Tower 2U

  • Power 1000 VA / 900 W
  • Waveform sine wave
  • Power factor (PF) 0.9

Request a quote Specifications

UPS GT COMPACT 1kVA/0,9kW On-Line 1F Rack/Tower 2U

GT COMPACT 1kVA/0,9kW UPS – a cost-effective on-line double-conversion UPS in a 2U enclosure for 19" racks or tower use. For LANs, servers and ICT systems.

  • On-line VFI, PF 0.9, 0 ms transfer time
  • 100–300 V input voltage range
  • Approx. 5 min backup time*, up to approx. 34 min with EBMs
  • Sockets: 8 x IEC C13
  • USB, RS232, EPO, SNMP/Modbus card slot

Size your UPS in the calculator or request a quote.

Zapytanie

Technical specifications

Power

1000 VA / 900 W

Topology (IEC 62040-3)

On-line double conversion (VFI)

Form factor

Rack 19" / Tower, 2U

INPUT
Phases

1

Nominal voltage

208 / 220 / 230 / 240 V

Voltage range

100–300 V

Nominal frequency

50 / 60 Hz (auto-sensing)

Frequency range

45–66 Hz

Input power factor

≥ 0.99

Current distortion (THDi)

< 3%

Input connection

IEC 60320 C14 (10 A)

Earthing system

TN-S / TN-C / TN-C-S / TT

OUTPUT
Output voltage

208 / 220 / 230 / 240 V (configurable)

Voltage accuracy

±1%

Output frequency

50 / 60 Hz ±0.05% (battery mode)

Waveform

sine wave

Power factor (PF)

0.9

Crest factor (CF)

3:1

Voltage distortion (THDu)

≤ 2%

Overload capacity

100–105%: continuous; 105–130%: transfer to bypass after 60 s; 130–150%: transfer to bypass after 30 s

Output sockets

8 x IEC 60320 C13

BATTERIES
Battery technology

VRLA / AGM

Internal batteries

2 x 12 V / 7 Ah

Battery voltage

24 V DC

Backup time*

≈ 5 min

External battery modules (EBM)

yes (optional)

Compatible EBM

GTEBM_RT2_24V_ZOORX

Backup time with 1 EBM*

≈ 34 min

Charging current

1 A

Recharge time

approx. 3 h to 90% capacity

EFFICIENCY AND FUNCTIONS
Efficiency

≥ 89%

Efficiency (ECO mode)

≥ 94%

Transfer time

mains ↔ battery: 0 ms; mains ↔ bypass: 4 ms; ECO ↔ battery: 10 ms

Cold start

yes

EPO connector

yes

Protections

short-circuit, overload, overtemperature

Alarms

overload, battery mode, low battery, fan failure

Parallel operation

no

EMC

PN-EN IEC 62040-2, C2

COMMUNICATION
Control panel

LCD display, 4 LEDs, 4 buttons

Communication ports

USB (HID) / RS232 / Intelligent Slot

Optional cards

Intelligent Slot cards: WEB/SNMP, RS485, MODBUS, dry contacts

Operating systems

MS Windows / Linux / Unix / MacOS, VMware ESXi, Hyper-V

ENCLOSURE AND ENVIRONMENT
Dimensions (W x H x D)

439.8 x 88 (2U) x 428 mm

Weight

12.6 kg

Ingress protection

IP20

Colour

black

Operating temperature

0–40 °C

Humidity

0–95% (non-condensing)

Operating altitude

up to 1000 m a.s.l. without derating; 1000–3000 m: -1% per 100 m

Noise level (1 m)

≤ 50 dB

* Backup time at 75% load and PF=0.8. Actual runtime depends on load, temperature and battery condition.

GT COMPACT 1kVA UPS – overview

GT COMPACT 1kVA is an on-line double-conversion (VFI) UPS in a universal 2U rack/tower enclosure. The load is supplied by the inverter with a pure sine wave and a mains failure causes no interruption.

COMPACT is the entry on-line line of GT UPS for network cabinets, small server rooms and ICT systems that need on-line protection at a reasonable cost.

Frequently asked questions

How can I extend the backup time of GT COMPACT 1kVA?

Connect external battery modules (EBM, GTEBM_RT2_24V_ZOORX). Runtimes with modules are listed in the specification table.

Technical data according to the GT UPS datasheet (version 01.26). Please consult our Sales Department before ordering.

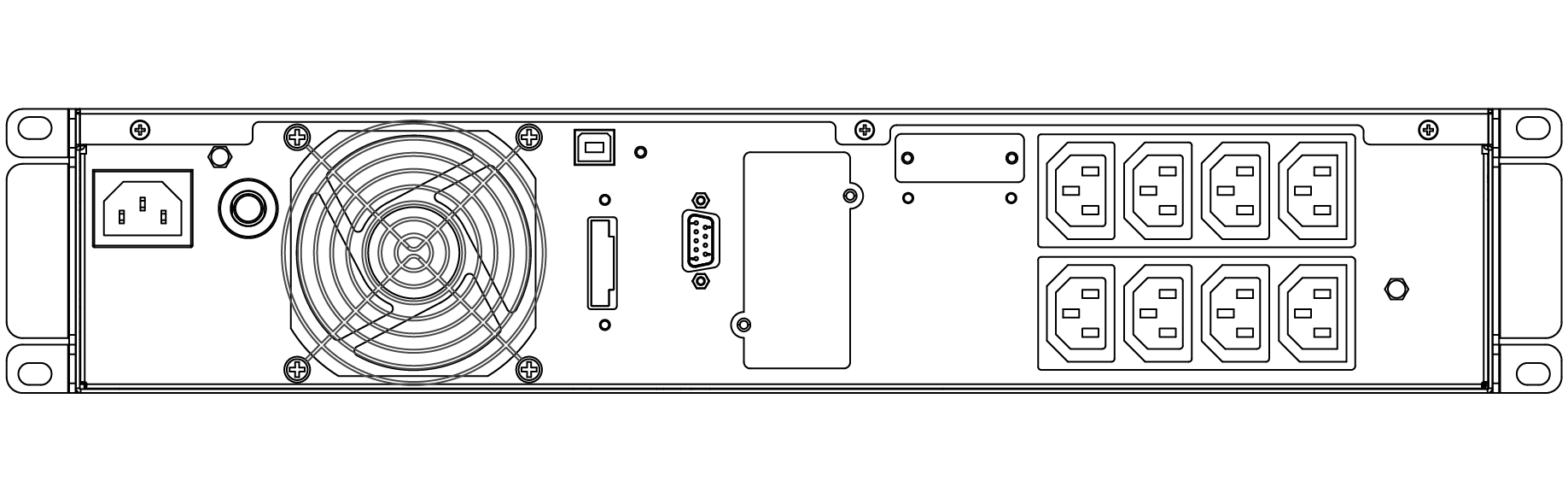

Back panel
